Resistive and capacitive Smart phone screens

Resistive Technology

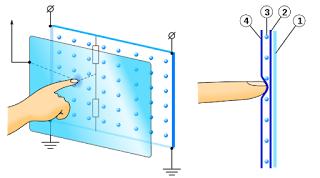

Mobile screen with resistive screen

Resistive screens have a double-layer design. Between the two layers is a narrow gap that may be filled with air or tiny microdots as a resistive material. When users wish to make a selection on the screen, their finger or stylus presses the top layer onto the underlying layer, creating a circuit. Since both layers incorporate grids of intersecting lines, the smartphone uses the resulting X and Y coordinates to pinpoint the precise location of any pressure source and acts accordingly. The pressure triggers the interior technology of the screen and then communicates the appropriate input signal to the smartphone’s processor, which triggers the event or action that the user intended to initiate. This entire process happens almost instantly.

Disadvantage of Resisitve Touchscreen

  • Not very touchy, you need to push down more diligently
  • Poor contrast becuase of having additional reflections from extra layer of material place over the screen
  • Does not support multi-touch

Capacitive Technology

Mobile screen with capacitive technology
Capacitive innovation is utilized in various sensors, yet it is generally natural to shoppers through its appearance in the touchscreens of most mid-range to top of the line cell phones and tablets. Capacitive sensors utilize the human body's characteristic capacitance, which is its capacity to store and direct a negligible electric charge. The human body can put away to a couple dozen kilovolts. At the point when the body is bizarrely profoundly charged, the individual will get little stun in the wake of contacting a grounded conductive item. A short time later, their body will come back to its ordinary capacitance.

In a cell phone screen, the human touch interferes with the electrostatic field of the screen, imparting a sign to the processor inside the telephone. At the point when it gets the sign, the processor starts the fitting activity as demonstrated by the client's information.

Disadvantage of Resisitve Touchscreen

  • Since the innovation is reliant on the coductive idea of human body, it doesn't work if the user is wearing gloves.
  • In view of having a perplexing structure, this hush up costly.
  • Glass is increasingly inclined to breaking.
